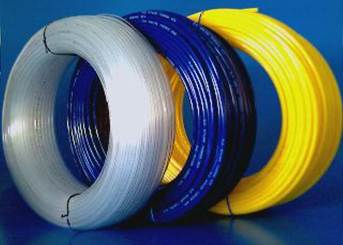

NYLON TUBING
產品說明
Nylon tubing offers good chemical resistance and good corrosion-resistance. And our main product is nylon 6 tubing and it is suitable for transporting most pneumatics, oils, chemicals, liquids, alkalis and has many uses in the engineering and pharmaceutical industries for pneumatic equipment, fuel pipes and lubrication.
// Features
// Material
A full selection of tubes made from the very best of materials including PA 6 (Main Product) or the PA 11,or PA 12 depending upon your requirements.
// Applications
// Temperature Range
-20°C to +90°C (PA6) -40°C to +100°C (PA11/PA12)
// Working Pressure
4 to 1 safety factor
// Color
Natural(N)/Black(BK) /BLUE(BU) /RED(R) /YELLOW(Y)
// Metric size type ( For Nylon6 Tubing )
// Inch size type ( For Nylon6 Tubing )
// Features
- Long Fatigue Life
- Dimensional Stability
- Excellent Abrasion Resistance
- Broad Range of Corrosion-resistance and Chemical compatibility
- Resistant to most solvents, alkalis, oils, and petroleum products
// Material
A full selection of tubes made from the very best of materials including PA 6 (Main Product) or the PA 11,or PA 12 depending upon your requirements.
// Applications
- Tubing for pneumatic equipment
- Tubing for fuels and oils
- Tubing for lubrication/ hydraulics
- Tubing for chemical transfer
// Temperature Range
-20°C to +90°C (PA6) -40°C to +100°C (PA11/PA12)
// Working Pressure
4 to 1 safety factor
// Color
Natural(N)/Black(BK) /BLUE(BU) /RED(R) /YELLOW(Y)
// Metric size type ( For Nylon6 Tubing )
| TYPE | O.D.* I.D. (mm) | BREAK PRESSURE (Kgf/cm²) |
WORKING PRESSURE (Kgf/cm²) |
WEIGHT (g/m) |
| 6N0402 | 4X2 | 80 | 20 | 10 |
| 6N0425 | 4X2.5 | 72 | 18 | 9 |
| 6N0604 | 6X4 | 56 | 14 | 17 |
| 6N0806 | 8X6 | 48 | 12 | 24 |
| 6N1075 | 10X7.5 | 48 | 12 | 36 |
| 6N1209 | 12X9 | 48 | 12 | 52 |
| 6N1613 | 16X13 | 44 | 11 | 70 |
// Inch size type ( For Nylon6 Tubing )
| TYPE | O.D.* I.D. (mm) | BREAK PRESSURE (PSI) |
WORKING PRESSURE (PSI) |
WEIGHT (g/m) |
| 6N 1/8 | 3.2X2 | 1200 | 300 | 5 |
| 6N 3/16 | 4.76X3.2 | 880 | 220 | 11 |
| 6N 1/4 | 6.35X4.57 | 720 | 180 | 27 |
| 6N 3/8 | 9.5X7 | 720 | 180 | 35 |
| 6N-1/2 | 12.7X9.5 | 720 | 180 | 56 |
